Stainless Steel Guide Rod and Cap for Springfield Echelon Compact

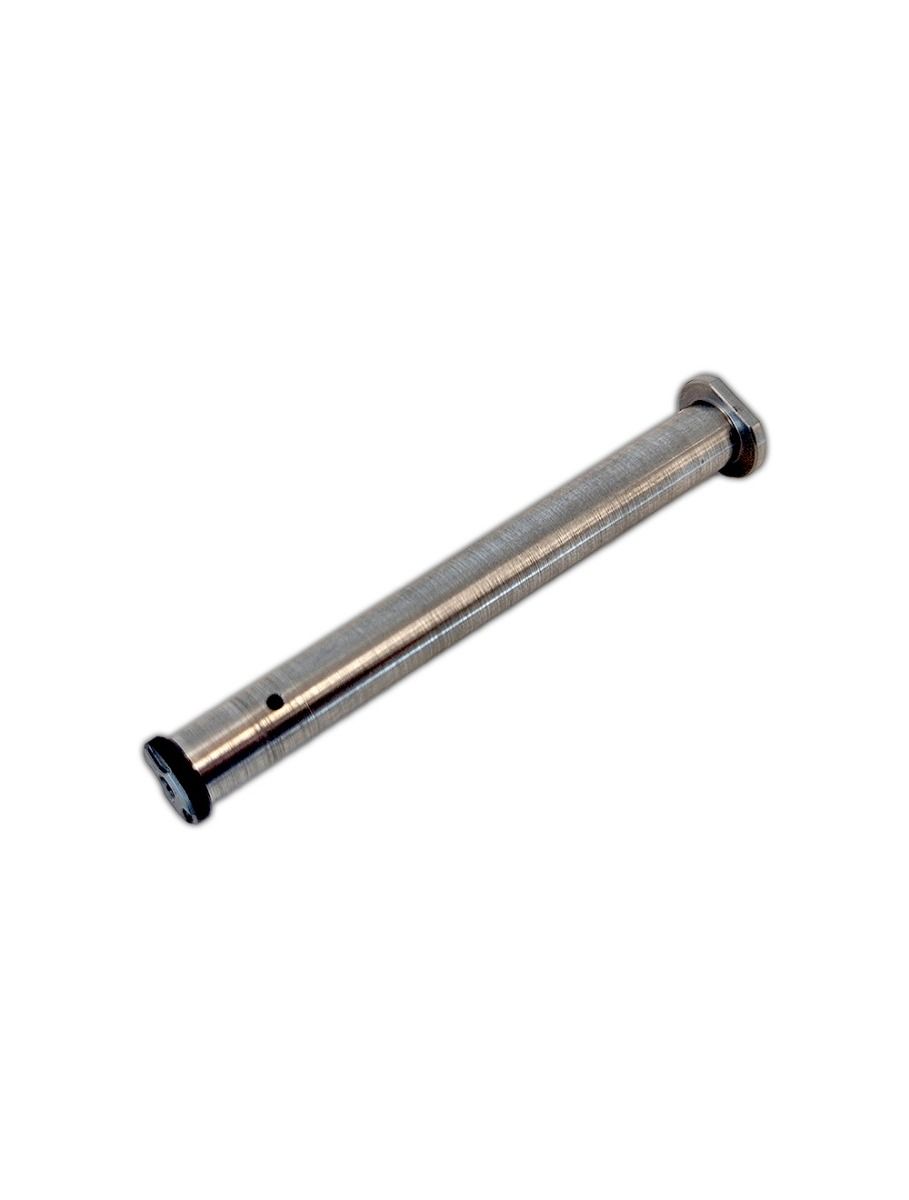

This stainless steel guide rod and cap assembly replaces the factory polymer recoil guide rod in the Springfield Echelon Compact. The primary function is adding mass under the muzzle to reduce muzzle rise during live fire. Factory guide rod and cap weigh 4.78 grams; this assembly weighs 33.04 grams—6.9 times the mass of the OEM component. The additional weight shifts the recoil impulse, allowing faster follow-up shots without altering spring rates or requiring a new recoil spring.

Compatibility

• Springfield Echelon Compact (4.0″ barrel / subcompact frame)
• Uses factory recoil spring (must be removed from OEM assembly)
• Does NOT fit full-size Echelon (4.5″ barrel) without adapter—verify platform

Key Features

• 303 stainless steel construction—corrosion-resistant, consistent mass

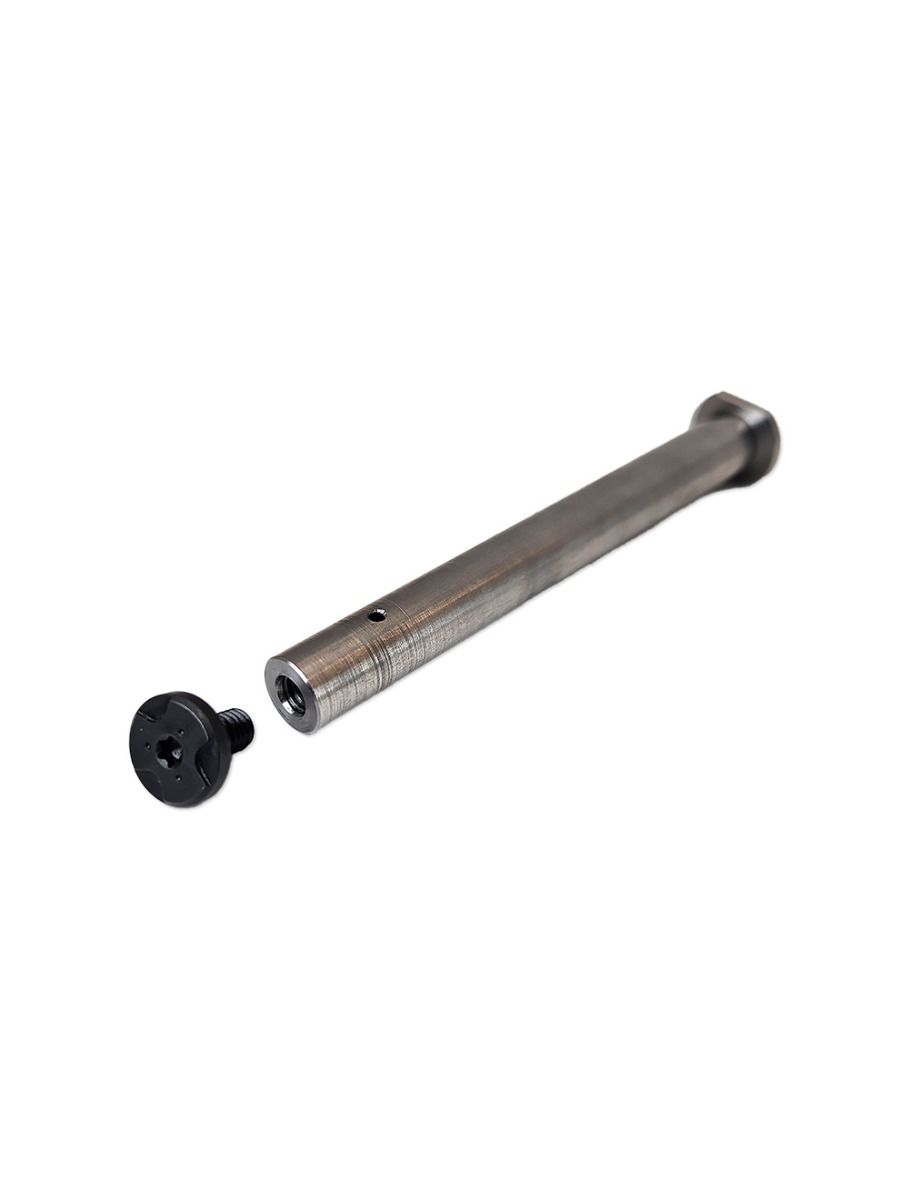

• Thread-in spring cap retains factory recoil spring; no proprietary parts
• Field-strip procedure unchanged: cap unscrews, spring and rod slide out
• Direct replacement—no fitting, no modification to slide or barrel
• Cap threads accept T-10 Torx driver (included in some kits; verify packaging)

Install Difficulty: 2/5

Time: 10–15 minutes first time, 5 minutes thereafter.
Tools needed: T-10 Torx driver, punch or small screwdriver to depress spring cap detent (if present on your model).
Procedure: Disassemble slide per factory manual. Remove OEM guide rod assembly. Pry the factory spring off the OEM rod using a flat blade—the spring is captured on the rod by a crimped flange. Slide spring onto this stainless rod, thread on the cap, and torque to ~15 in-lbs (hand-tight plus ¼ turn). Reassemble slide.

FAQ

Will this work with a compensator or threaded barrel?

Yes. The added mass under the muzzle is independent of barrel length or muzzle devices. Verify thread engagement between cap and rod if using a barrel extension that contacts the guide rod cap—clearance is standard for OEM-style setups.

Does it change the recoil spring rate?

No. The factory recoil spring is retained. Only the mass of the guide rod assembly changes. The spring rate and preload remain factory-spec. If you need a different spring rate for light loads or a compensator, this rod accepts standard 4.0″ Echelon recoil springs (not included).

Can I use this in a full-size Echelon?

Not directly. The Compact guide rod is shorter than the full-size rod. Installing it in a full-size slide will leave the spring unsupported at the muzzle end. A full-size specific version of this rod is required for the 4.5″ Echelon.

Shipping: Ships within one business day via USPS Priority or UPS Ground. Warranty: This component carries a limited lifetime warranty against manufacturing defects—covers breakage, thread failure, or corrosion under normal use. Does not cover modification or abuse.
