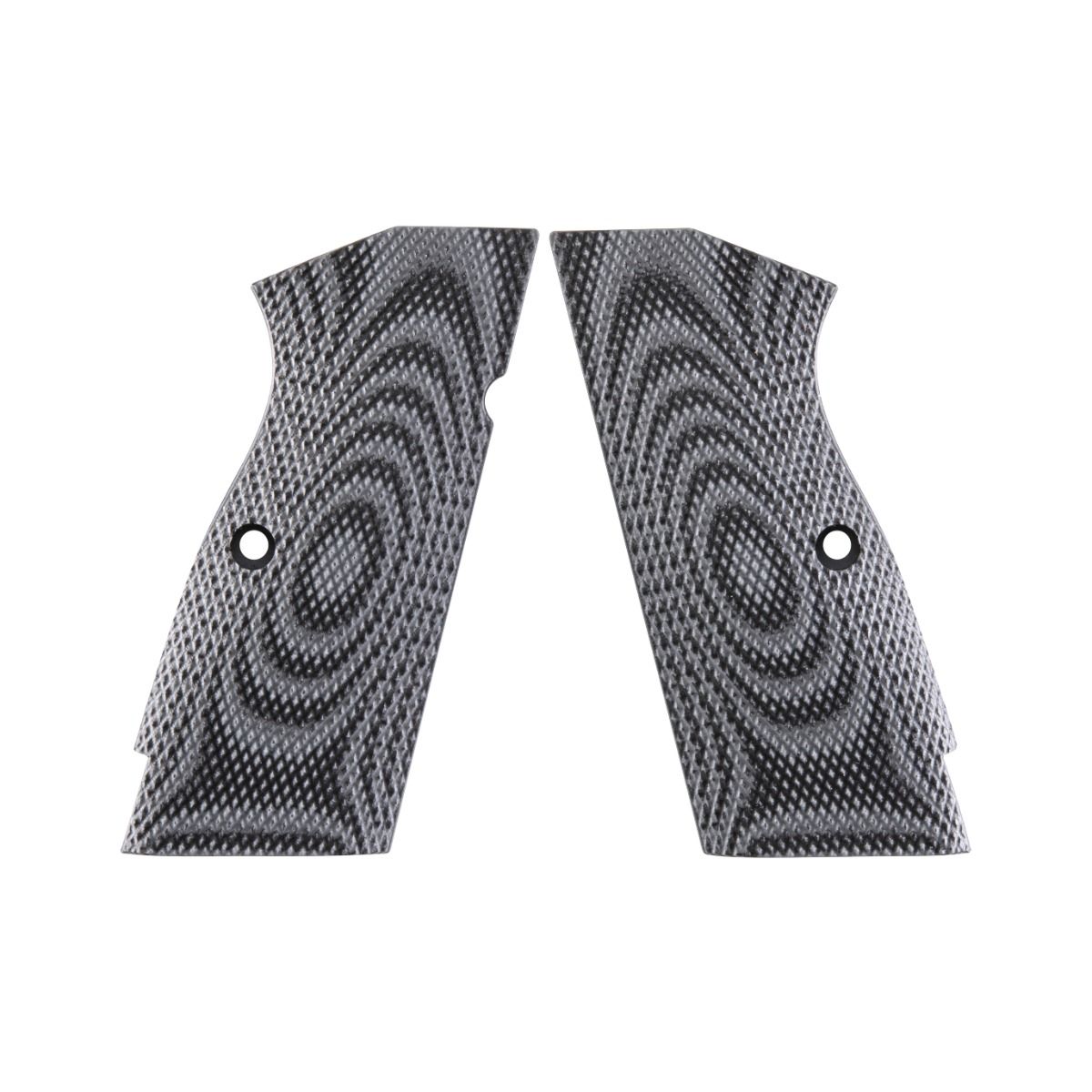

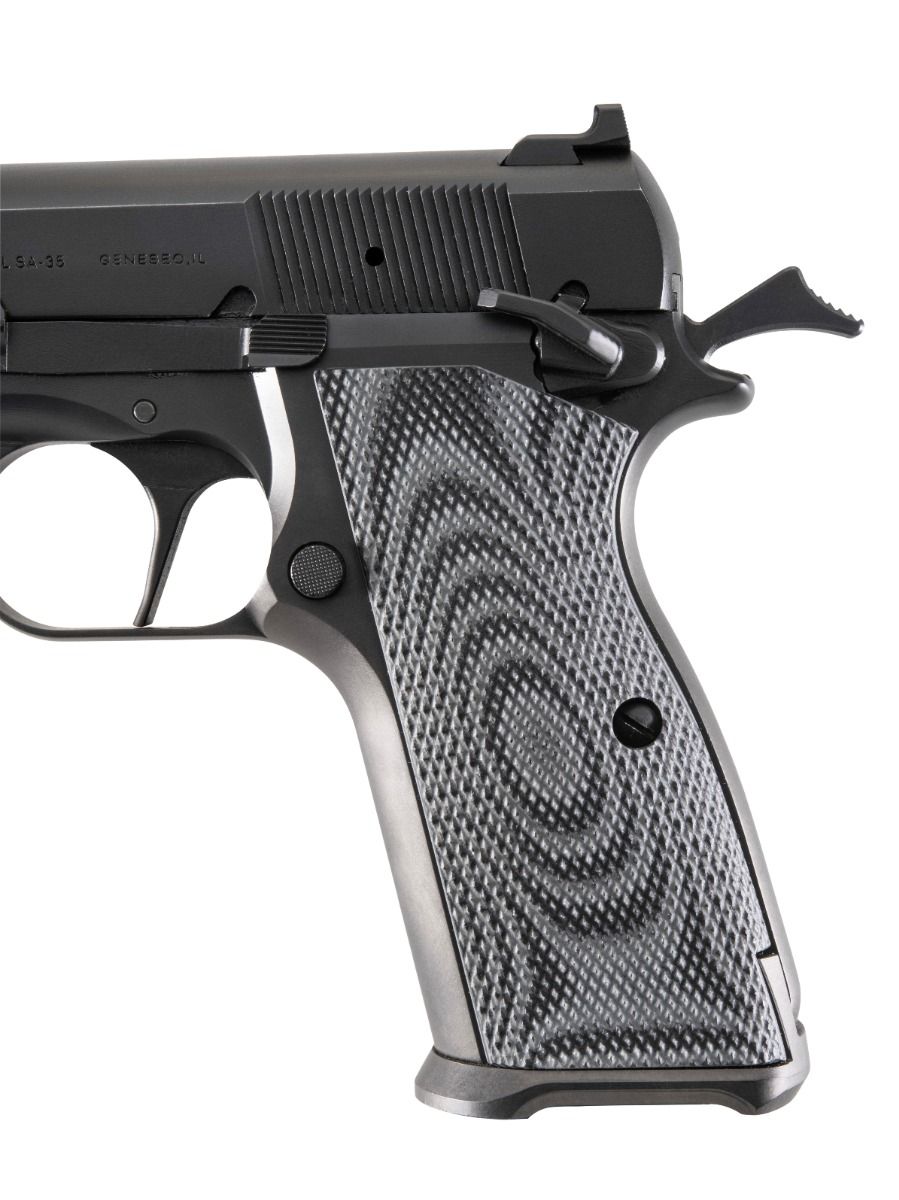

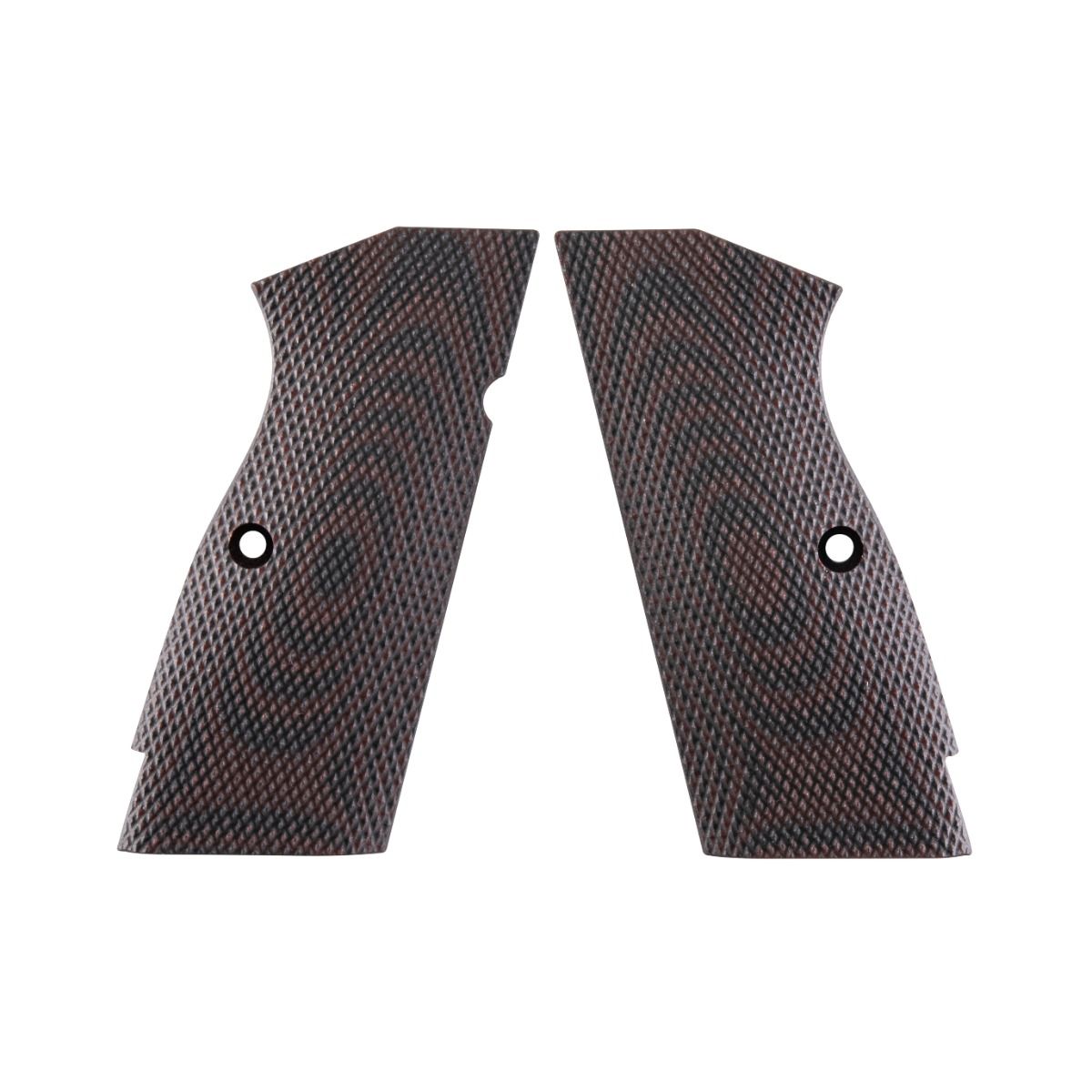

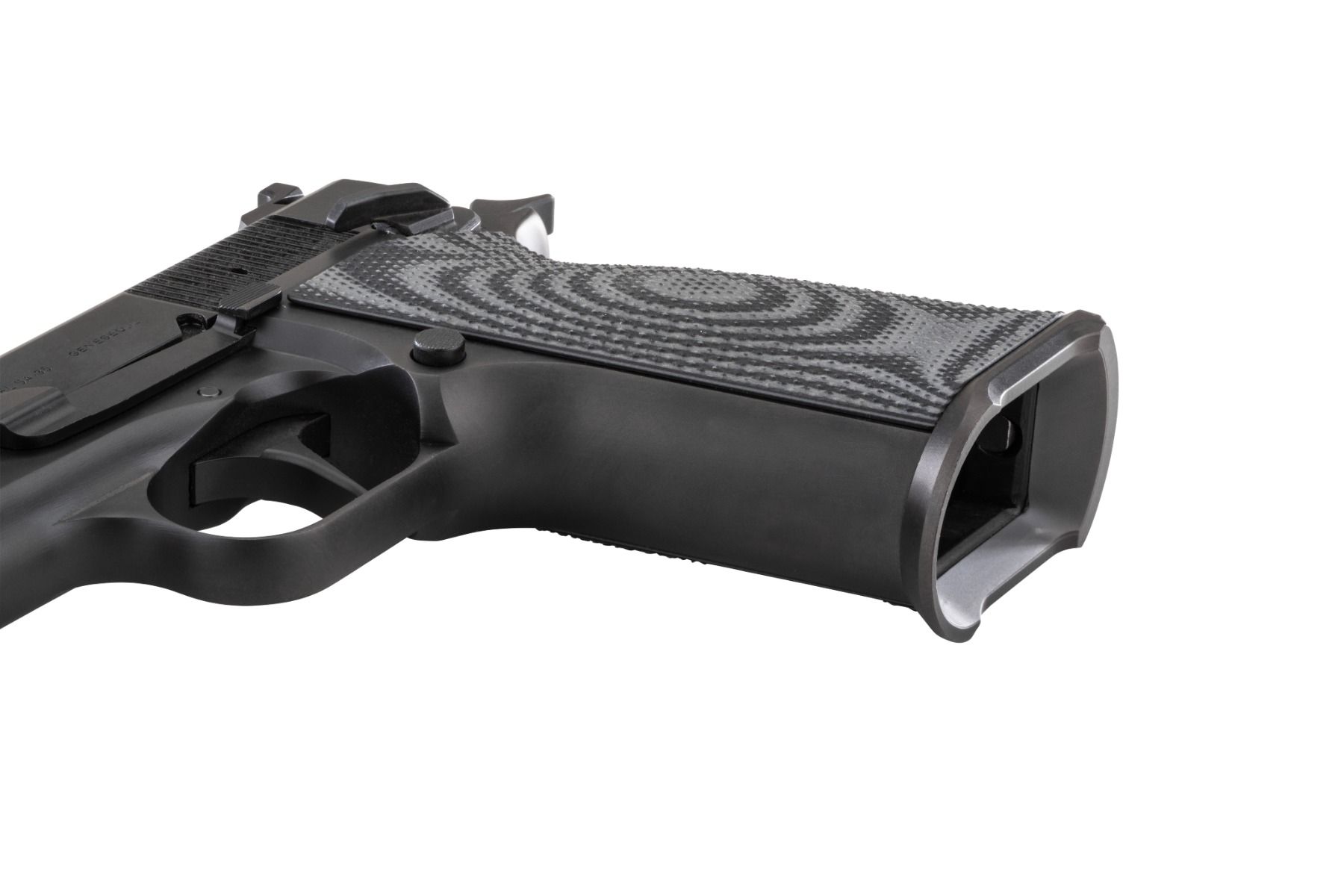

These G10 grip panels are machined specifically for the Springfield SA-35 fitted with the Apex Low-Profile Magwell. The primary function is to provide a textured, palm-swelled gripping surface while maintaining full clearance for the magwell body. Factory SA-35 grips typically interfere with aftermarket magwell installation or require modification; this set eliminates that issue with a pre-cut lower geometry that mates directly to the magwell profile. At 1.520″ across the widest point of the palm swell, these grips add measurable hand-fill without exceeding practical holster clearance.
Compatibility
- Springfield SA-35 (all variants)
- Requires the Apex Low-Profile Magwell (sold separately)
- Does not fit factory SA-35 without magwell modification
- Additional color options available directly from LOK Grips
Key Features
- Two-tone G10 construction — machined, not molded
- Palm swell contour with aggressive checkering for positive traction under recoil
- Lower grip geometry pre-cut for Apex Low-Profile Magwell — no fitting required
- Width: 1.520″ at palm swell (measured at widest point)
- Improved ergonomic fill vs. factory flat grips — reduces shooter-induced torque from grip slip
Install Difficulty
Level: 1/5
Requires: 3/32″ hex driver or T10 Torx bit (depending on grip screw type). Remove factory grip screws, swap panels, re-torque to 10-12 in-lbs. No filing, sanding, or trigger work needed. If the magwell is already installed, the grips drop into place.
Frequently Asked Questions
Will these work with the factory SA-35 magwell?
No. The lower cutout is designed specifically for the Apex Low-Profile Magwell. Installing them on a factory gun without the magwell will leave an exposed gap at the base of the frame.
Do I need to remove the magwell to install these grips?
No. The magwell can remain installed. The grip panels slide into position from the sides and clear the magwell body without obstruction.
Are these thicker than the factory SA-35 grips?
Yes. The palm swell adds approximately 0.150″–0.200″ of width per side at the center of the grip compared to the factory flat panels. The 1.520″ measurement is the total width at the widest point.
Stock status reflects live inventory on the Apex website. If the listing shows “in stock,” the set ships without delay. Additional color/finish options for this magwell cut are available directly from LOK Grips. All Apex-sold grip sets carry standard warranty coverage against material or manufacturing defects.
