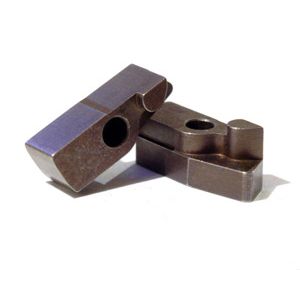

Fully Machined Sear

This fully machined sear is a drop-in replacement component for Smith & Wesson M&P series pistols, designed to reduce trigger pull weight, shorten over-travel, and improve reset feel. Originally developed as the first aftermarket upgrade for the M&P platform, this sear addresses the primary complaint of factory triggers: a gritty, heavy pull with excessive travel. When installed as a standalone part, it delivers a cleaner break and more consistent trigger mechanics without requiring permanent modifications to the pistol. It is also the sear used in all current M&P, M&P M2.0, and Shield trigger kits, making it a reliable upgrade path for shooters who want a performance trigger without replacing the entire fire control group.

Compatibility

• Smith & Wesson M&P (all generations)
• Smith & Wesson M&P M2.0 (all calibers, including Compact, Full Size, and Core models)
• Smith & Wesson M&P Shield (original and M2.0)
• Smith & Wesson M&P Shield Plus
• Smith & Wesson M&P 9L / 9 Pro Series
• Smith & Wesson M&P 45 / 40 / 22
• Will not fit M&P Bodyguard or M&P 15

Key Features

• Drop-in replacement – no fitting, filing, or stoning required
• Reduces trigger pull weight by approximately 1.5–2 lbs (actual reduction depends on trigger spring combo)
• Shortens over-travel by 30–40% compared to factory sear
• Improves reset definition – tactile and audible click at the reset point
• Machined from billet steel with a black nitride finish for wear resistance
• Standard engagement angle maintained for drop safety (no geometry changes)
• Same sear used in Apex M&P trigger kits – compatible with Apex trigger shoe, but also works with factory trigger shoe

Install Difficulty: 2/5

Moderate. Requires removal of the slide, disassembly of the sear housing block, and replacement of the sear. Tools needed: roll pin punch set (1/16” and 3/32”), small hammer, and a non-marring bench block. No permanent modification to the frame or slide required. Typical install time: 20–40 minutes for first-time users. A detailed instruction sheet is included.

Frequently Asked Questions

Will this sear work with my factory M&P trigger shoe?

Yes. The sear is designed as a standalone upgrade and interfaces directly with the factory trigger bar and shoe. You do not need to replace the trigger shoe to see performance improvements.

Does this sear affect trigger safety or drop safety?

No. The sear maintains the factory engagement geometry and does not modify the sear-to-stripper block interface. The M&P’s internal safeties (trigger safety, striker block) remain fully functional. The sear is not a trigger shoe replacement, so the trigger safety is unchanged.

Will this sear reduce trigger pull weight too much for duty or competition use?

Typical pull weight after installation ranges from 4.5–5.5 lbs with a factory trigger return spring. This is suitable for USPSA Production, IDPA SSP, and law enforcement duty use. If a lighter pull is desired, pairing this sear with a reduced-power trigger return spring will bring weight down to 3.5–4.5 lbs.

Shipping & Warranty: Ships same business day if ordered before 2 PM EST. Backed by a limited lifetime warranty against manufacturing defects in materials and workmanship. No-hassle returns within 30 days of purchase.
