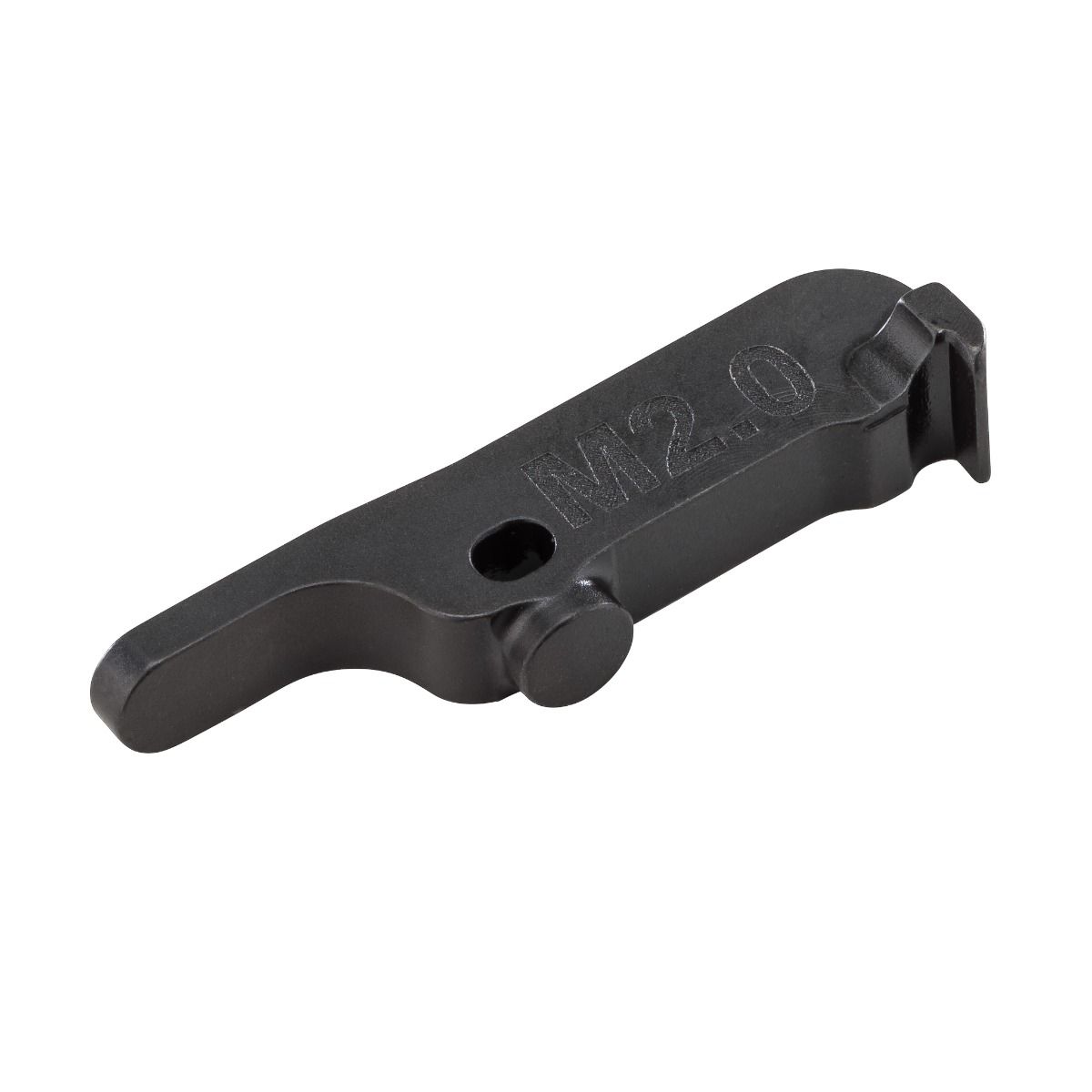

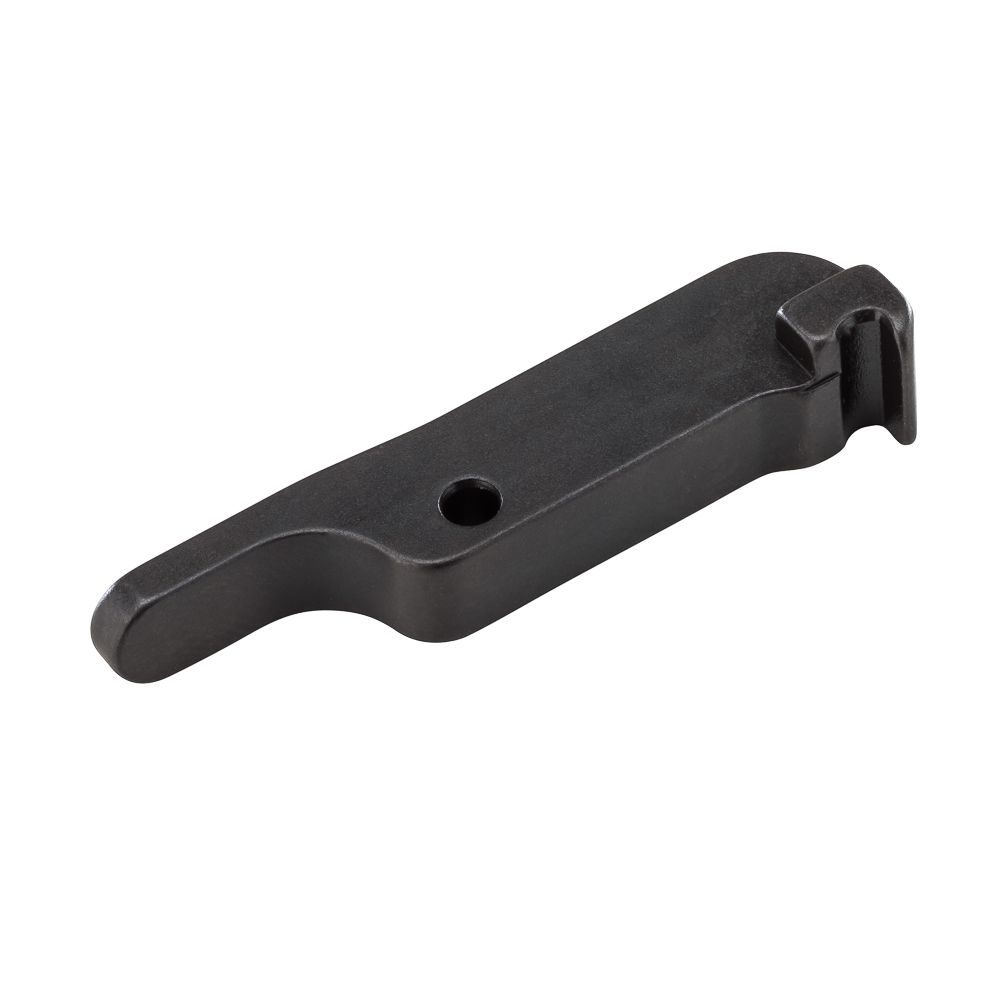

Failure Resistant Extractor for M&P

The Failure Resistant Extractor (FRE) is a direct-drop-in replacement for the factory M&P extractor, engineered to eliminate extraction failures under high-round-count or adverse conditions. The factory MIM extractor is a common failure point on M&P pistols—especially when running suppressed, with high-pressure loads, or in dirty environments. This component solves that by replacing the cast part with a billet heat-treated stainless steel extractor, using a wire-EDM machined hook geometry for consistent case head control and positive ejection. The result is a part that holds tension longer and maintains engagement geometry through thousands of rounds.

Compatibility

• Smith & Wesson M&P M2.0 (full-size, compact, and subcompact in 9mm, .40 S&W, .45 ACP)
• Smith & Wesson M&P M2.0 in 10mm (specific 10mm variant includes optimized hook geometry for feeding/extraction)
• Smith & Wesson M&P Shield Plus (9mm, .30 Super Carry)
• Smith & Wesson M&P 1.0 (full-size, compact, subcompact in 9mm, .40 S&W)
• Smith & Wesson M&P 1.0 in .357 SIG
• Smith & Wesson M&P 9 M2.0 Compact Optics Ready
• Smith & Wesson M&P 10mm M2.0 (includes replacement Extractor Pivot Pin)

Key Features

• Billet heat-treated 17-4 PH stainless steel construction
• Wire-EDM cut extractor hook geometry for precise, repeatable engagement
• Drop-in fit—no slide or extractor modification required
• Consistent extraction across wide temperature and debris ranges

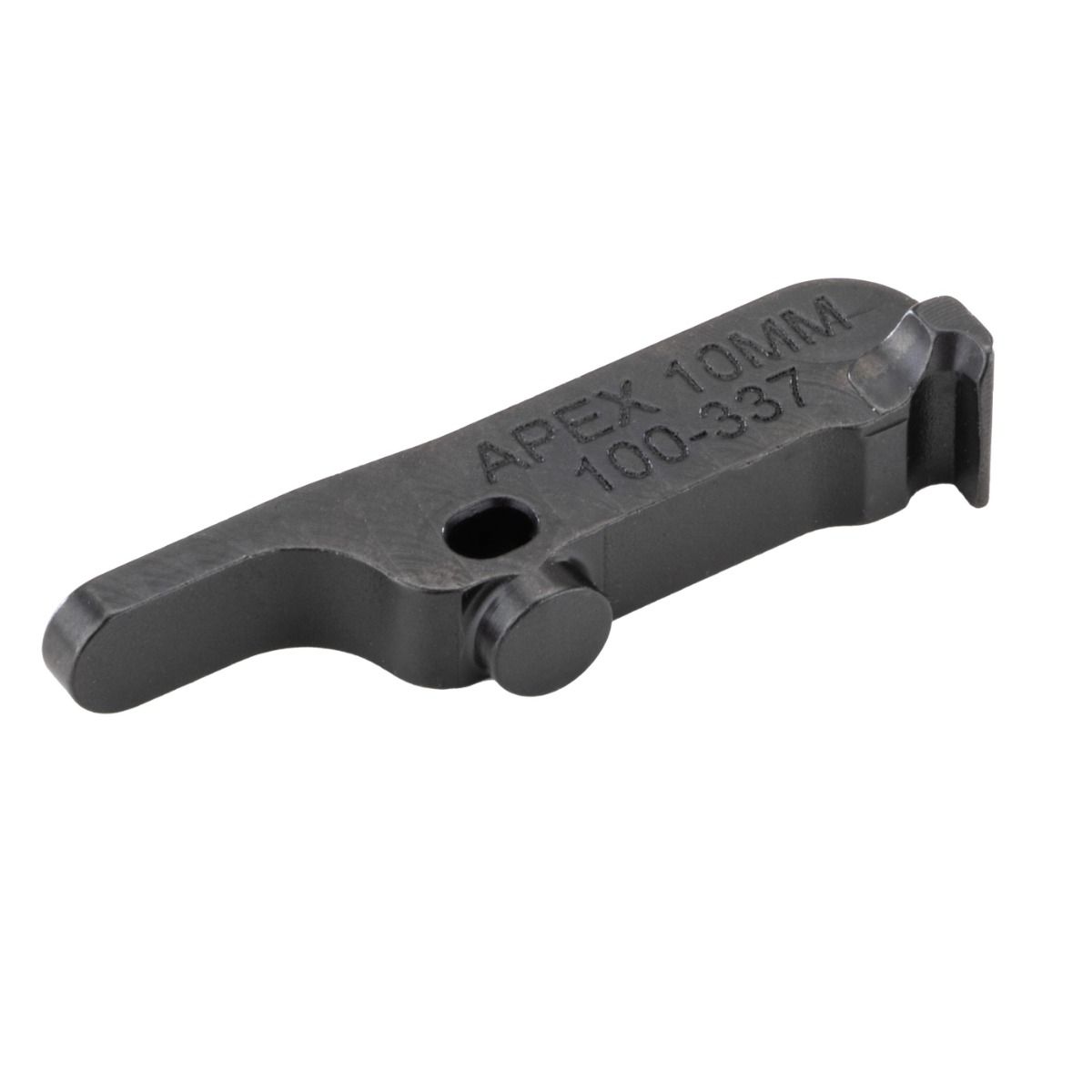

• 10mm variant includes replacement Extractor Pivot Pin and optimized hook profile
• Direct replacement for factory extractor spring (use OEM or aftermarket spring)

Install Difficulty: 2/5

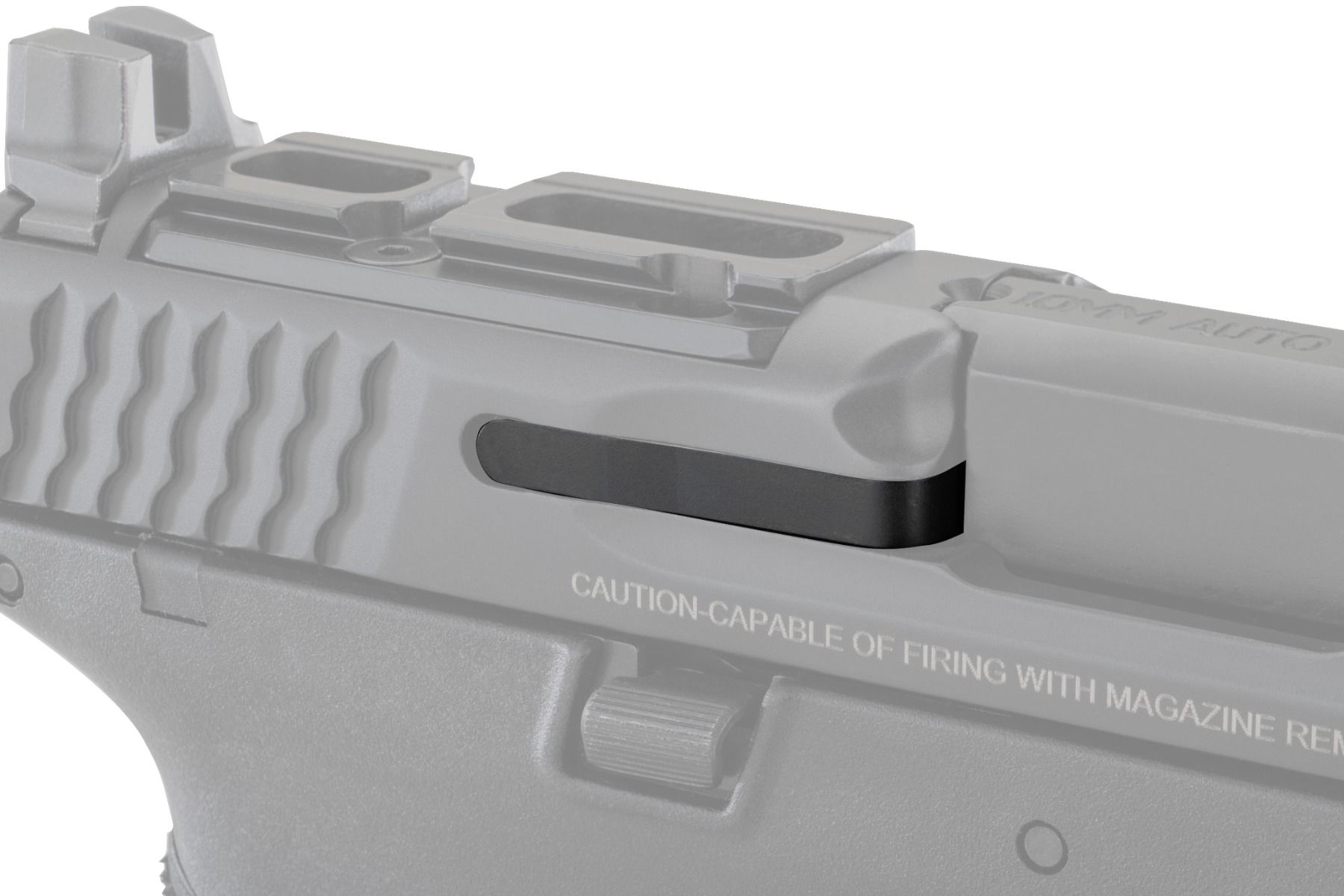

Requires punch set, non-marring hammer, and small flathead screwdriver. Remove slide, depress extractor plunger, drift out extractor pin, swap extractor, reinstall pin. No fitting or filing required. 10mm variant includes new pivot pin—replace it during install. Approx. 10 minutes.

FAQ

Will this work with my M&P 1.0 in 9mm?

Yes. The FRE is a direct replacement for all M&P 1.0 and 2.0 variants in 9mm, .40 S&W, .45 ACP, and .357 SIG. The 10mm variant is specific to 10mm M2.0 pistols.

Do I need to replace the extractor spring?

Not required, but recommended if your current spring has over 5,000 rounds or shows signs of fatigue. Use an OEM or aftermarket spring of the same length.

Does this fix failure-to-eject issues with suppressed M&Ps?

Yes. The FRE’s increased hook engagement and heat-treated construction maintain tension even when carbon fouling or backpressure affects extraction. Many users report zero extraction failures after switching to this component when running suppressors.
