6″ Barrel Fitting Files

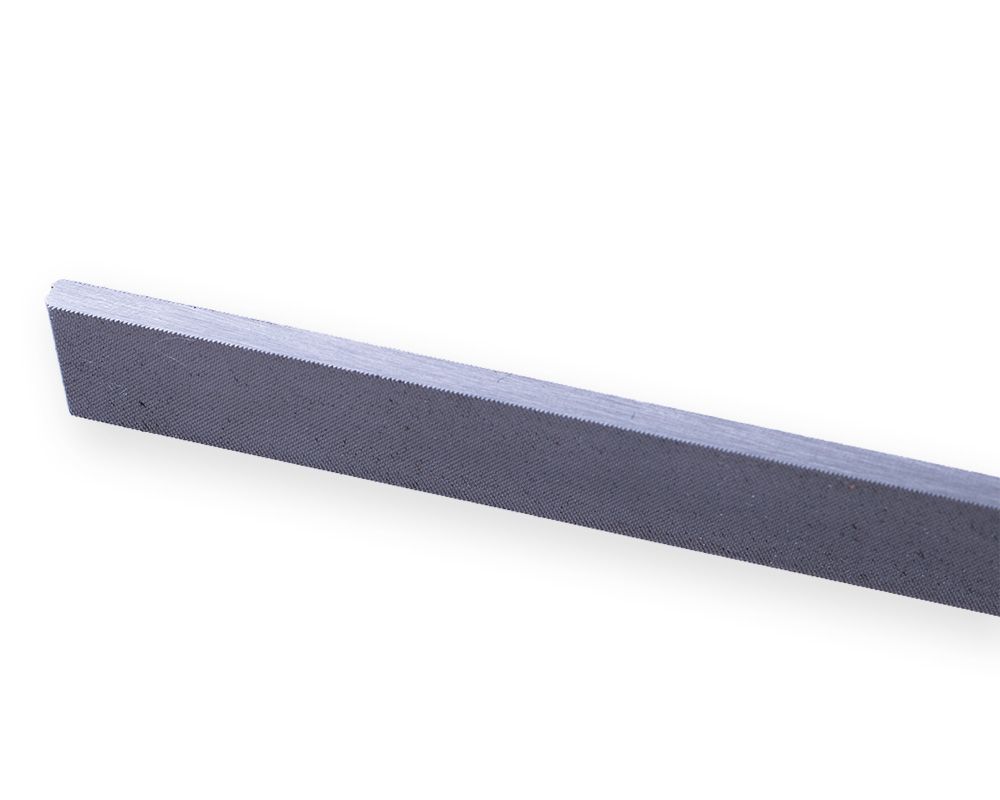

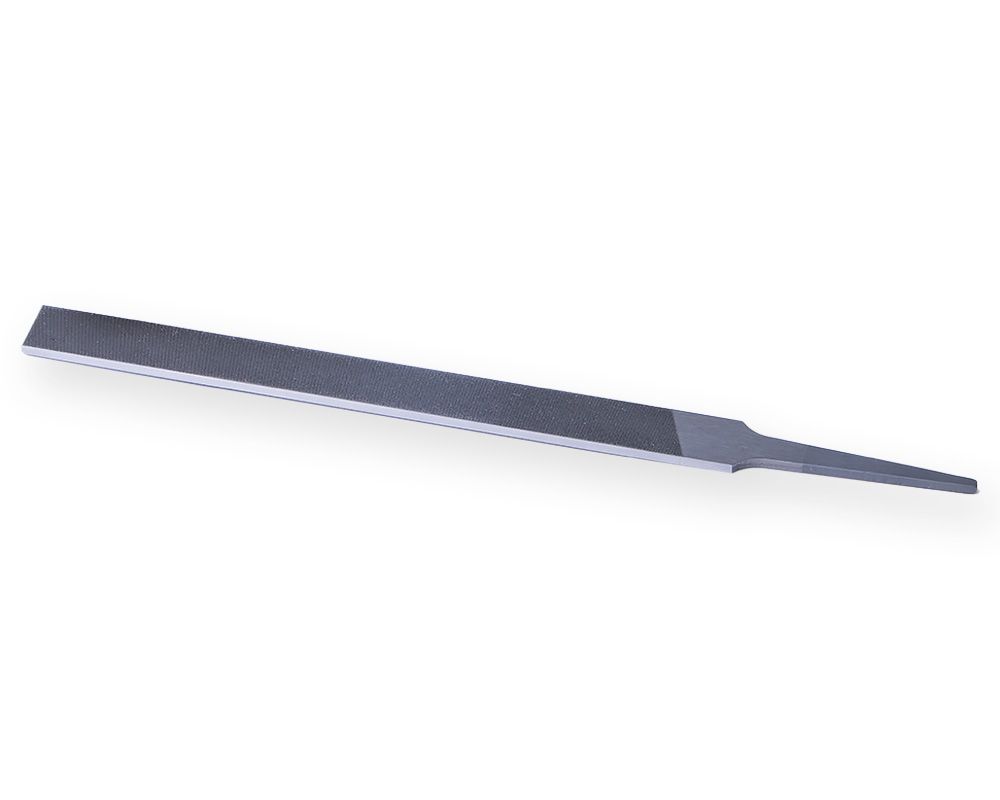

This 6″ Barrel Fitting File is a precision hand tool designed for gunsmiths and armorers fitting drop-in or custom barrels to S&W and 1911 platforms. It solves the problem of uneven material removal and accidental side-wall cutting during barrel hood, lug, and feed ramp fitting. The custom ground safe edges on the narrow faces prevent unintentional cutting into adjacent surfaces, while the parallel-ground wide faces ensure even, controlled stock removal. This file is intended for use with the Apex Barrel Fitting Jig or Apex 1911 Barrel Fitting Jig (each sold separately).

Compatibility

• Apex Barrel Fitting Jig (sold separately)
• Apex 1911 Barrel Fitting Jig (sold separately)
• Most S&W M&P, 1911, and 2011 barrel systems
• General metal fitting: steel, stainless, aluminum

Key Features

• Grobet brand – industry standard for professional gunsmiths; cuts cleaner and lasts longer than economy alternatives
• Custom ground safe edges – two narrow faces are non-cutting to prevent damage to frame rails, slide grooves, or barrel lugs
• Parallel design – ensures even cutting across the full file face, reducing the risk of uneven barrel fit
• 6″ length – optimal for barrel hood, lug, and feed ramp work without overreaching
• Economy 6″ File option – a solid, dependable choice for occasional use (same basic tasks, lower cost)

Install Difficulty

2/5 – Requires basic gunsmithing knowledge of barrel fitting. Tools needed: barrel fitting jig, bench block, calipers, and a fine-tooth check file for final fit. Safe-edge design reduces risk, but improper technique can still damage barrel or frame.

FAQ

Can I use this file without the Apex jig?

Yes, but the file is optimized for use with the Apex Barrel Fitting Jig or Apex 1911 Jig. Using it freehand increases risk of uneven material removal. The safe edges help, but a jig provides repeatable, square cuts.

What’s the difference between the Grobet and Economy versions?

The Grobet file is a professional-grade tool with tighter tooth geometry, longer edge life, and cleaner cut finish. The Economy file is a good budget option for occasional use but will dull faster and may leave a rougher surface. For barrel fitting where precision matters, the Grobet is recommended.

Will this work on stainless steel barrels?

Yes. Both the Grobet and Economy files cut stainless, carbon steel, and aluminum. For hardened barrels (416R, 4140), use light, consistent pressure and a sharp file to avoid galling.

Shipping & Warranty

This item ships from our warehouse within 1–2 business days. Apex Tactical warrants this file against manufacturing defects for one year from date of purchase. Abuse, misuse, or use with improper cutting fluid voids warranty. For warranty claims, contact our service team with order number and photos of the defect.
