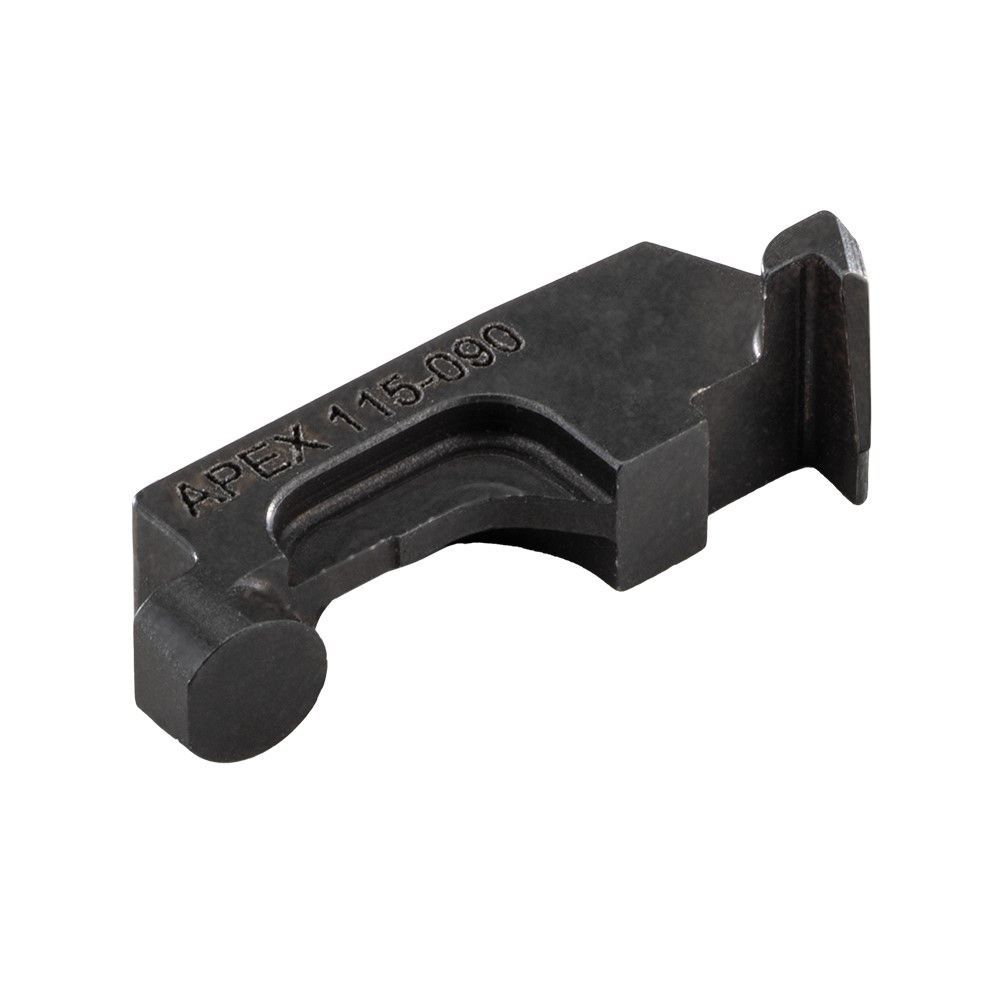

This Failure Resistant Extractor is a direct replacement for the factory extractor in Springfield Armory Hellcat pistols. It addresses inconsistent extraction and premature hook wear common with OEM parts, particularly after high round counts or when running suppressed. The extractor is machined from a billet of heat-treated 17-4 stainless steel, then given a Melonite finish for corrosion resistance and surface hardness. The critical engagement surface uses a custom hook geometry that maintains consistent case rim contact, reducing the likelihood of stovepipes, double-feeds, or weak ejection patterns.
Compatibility
- Springfield Armory Hellcat (all variants: standard, OSP, RDP, Pro)
- Springfield Armory Hellcat RDP
- Springfield Armory Hellcat Pro (9mm)
- Not compatible with Hellcat .380 or XD-series pistols
Key Features
- Billet 17-4 stainless steel construction – heat treated to 44-48 HRC for wear resistance
- Melonite finish – reduces friction, resists corrosion, extends service life
- Custom extractor hook geometry – optimized for consistent engagement with 9mm case rims
- Drop-in fit for Hellcat slides with standard extractor channel (no fitting required on most slides)
- Direct replacement for factory extractor – no modification to slide or firing pin assembly
Install Difficulty: 2/5
Requires a 1/16″ punch, brass or nylon hammer, and a small flathead screwdriver to depress the extractor plunger. Remove the slide, drift out the extractor retaining pin, compress the extractor plunger, and slide the old extractor out. Install the new extractor in reverse order. Average time: 10-15 minutes. No fitting required on standard Hellcat slides. Some aftermarket slides may require minor extractor tuning.
FAQ
Will this extractor work with a Hellcat Pro?
Yes. The extractor geometry is identical between Hellcat and Hellcat Pro slides. The same part fits both platforms.
Do I need to replace the extractor spring?
It is recommended but not required. If the original spring shows wear or compression, replace it with a new factory spring (sold separately). The extractor itself does not include a spring.
Does this extractor require a different ejector?
No. The factory ejector works correctly with this extractor. The hook geometry is designed to work with standard Hellcat ejector angles and ejection ports.
Shipping: Ships within 1-2 business days via USPS Priority or UPS Ground. Warranty: This component is covered by Apex Tactical’s limited lifetime warranty against manufacturing defects. Modifications to the extractor or use in a slide not listed above voids warranty.
