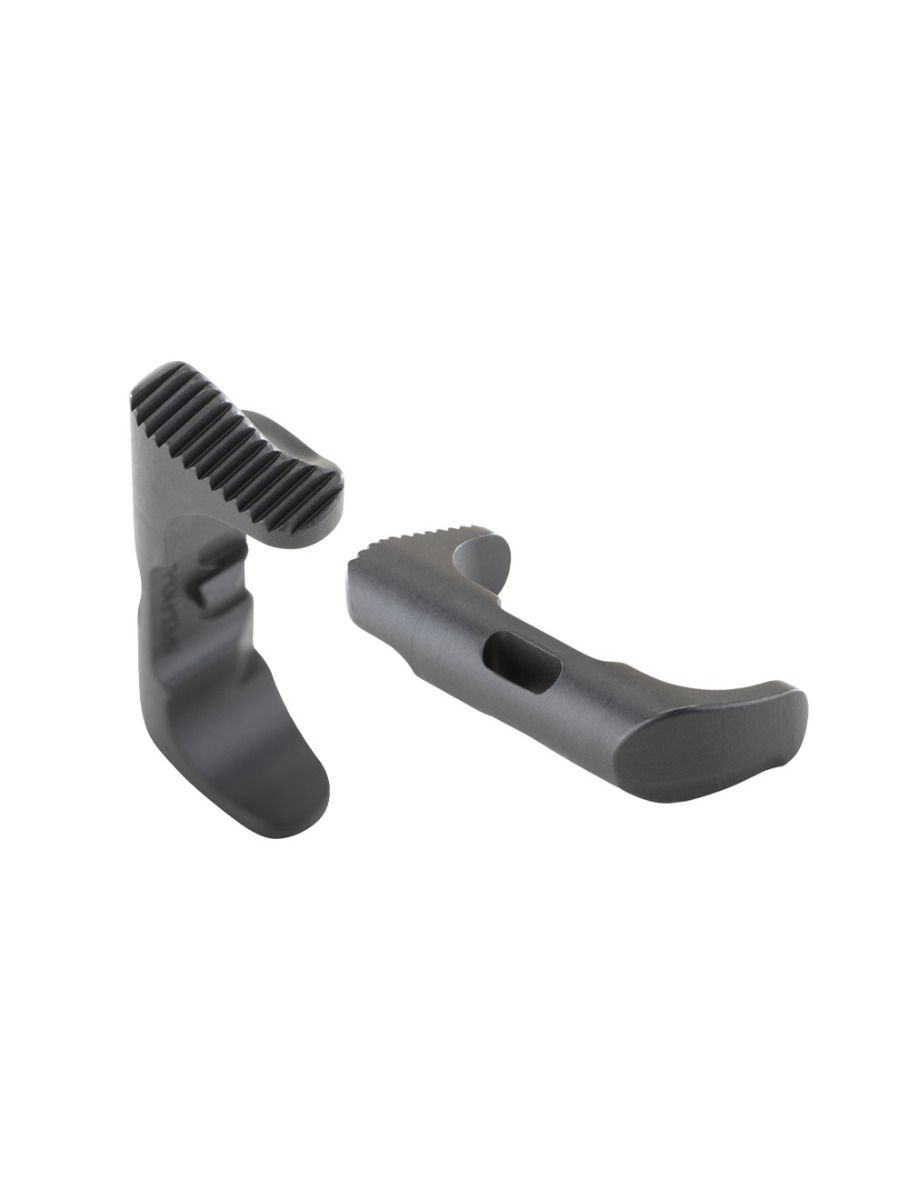

Extended and Single Sided Mag Release for Large Frame FN Pistols

This extended magazine release is a direct-drop-in replacement for the factory magazine catch on large-frame FN pistols. It solves the common issue of insufficient button protrusion under gloved use or high-grip shooting stances, where standard releases can be difficult to reach or depress fully without shifting your grip. Machined from bar stock steel, heat-treated, and finished in black oxide, this component provides a positive, repeatable release action with no modification to the frame or fire control group.

Platform Compatibility

• FN FNX-45 (all generations)
• FN FNX-40
• FN FNX-9 (large-frame models only – verify frame width)
• FN 509 series (same installation procedure; confirm part fit with your specific model)

Key Features

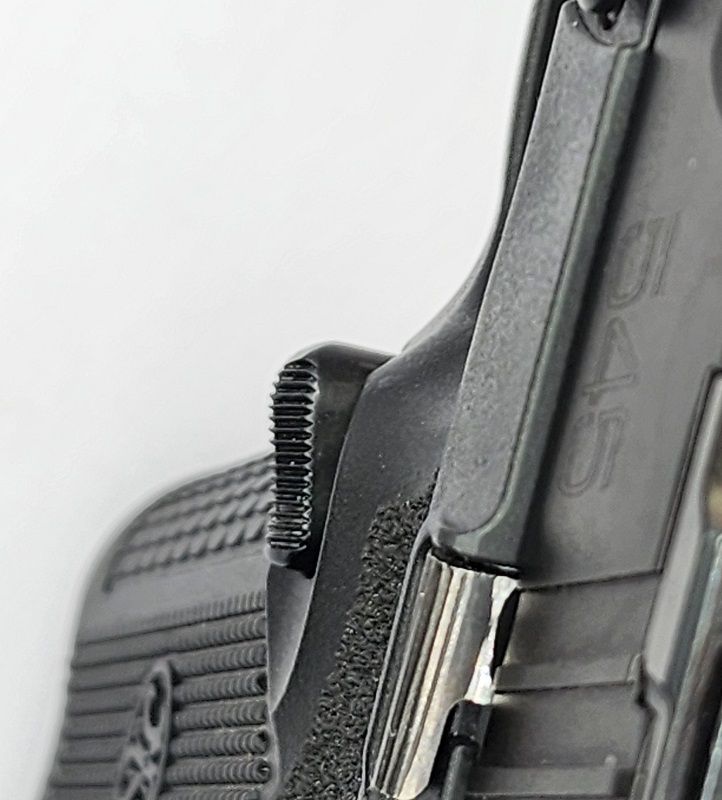

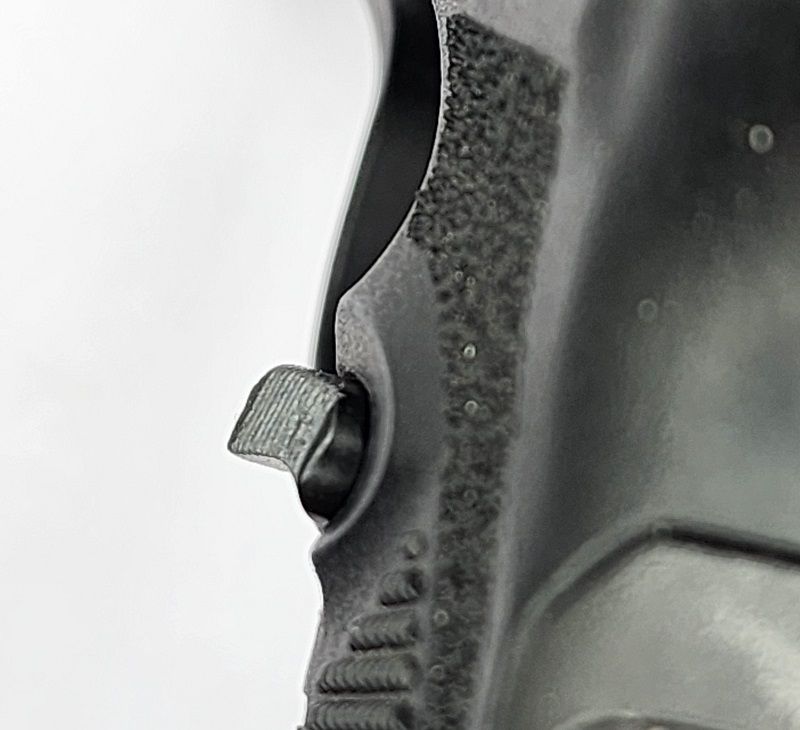

• Extended button length: Increases reach distance beyond factory spec for easier engagement without breaking your grip.
• Single-sided activation: Choose right-hand or left-hand orientation based on your shooting hand. Not ambidextrous.

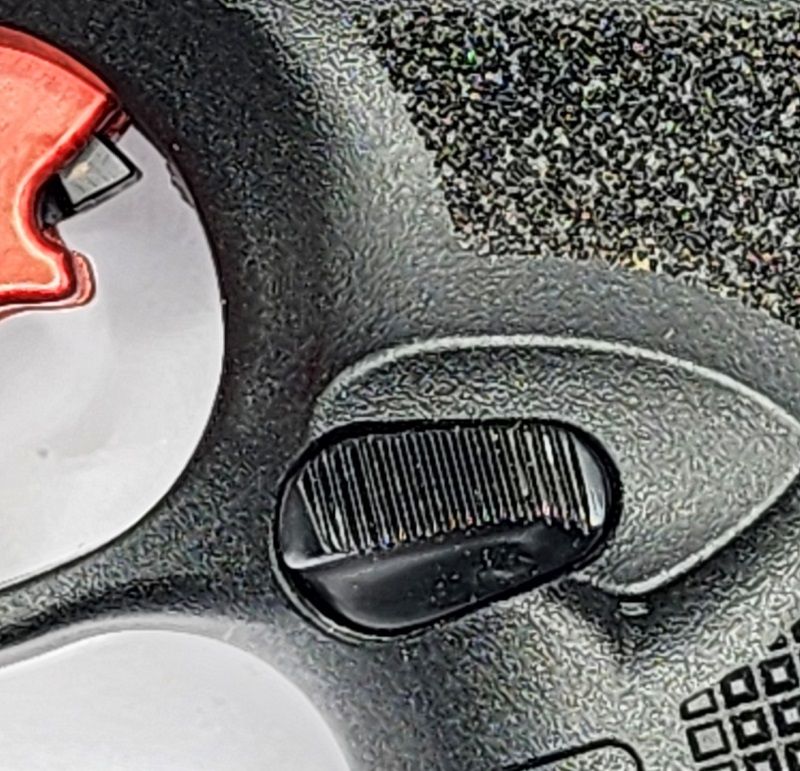

• Serrated, angled face: Provides tactile indexing under stress or with gloves. Reduces slip probability during reloads.
• Bar stock steel construction: Fully heat-treated to maintain dimensional stability and wear resistance over extended use. Black oxide finish for corrosion resistance.
• Direct drop-in installation: No fitting, filing, or permanent modification required. Retains factory spring and detent.

Install Difficulty: 2 / 5

Tools needed: 1/16″ punch or small flathead screwdriver (to depress detent), non-marring mallet (optional).

Estimated time: 5–10 minutes. Same procedure as FN 509 magazine release replacement. Remove slide, depress detent pin from opposite side, drift out factory release, insert new release from the correct side, and reinstall detent. No trigger group disassembly required.

Frequently Asked Questions

Will this work in a standard FN FNS or FNX-9 compact?

Only if the frame is the large-frame variant. The FNX-45 and FNX-40 use the large frame; most FNX-9 models use a medium frame. Measure your current release button protrusion. If the factory button is flush or recessed, this may not fit. Contact us with your serial number prefix if unsure.

Does this require any permanent modification to the frame?

No. This is a direct replacement using the factory detent and spring. No drilling, filing, or stippling required. Reversible to factory configuration.

Is this compatible with aftermarket trigger shoes or trigger kits?

Yes. This release interfaces only with the magazine catch and the frame, not the trigger mechanism or sear. It will function with any trigger kit, including our own Performance Trigger Kits for the FNX platform.

Shipping & Warranty: Ships same business day if ordered before 2 PM EST. This component carries a limited lifetime warranty against manufacturing defects in materials and workmanship. Warranty does not cover damage from improper installation, modification, or use of incorrect orientation (left vs. right hand).
