Duty/Carry Kit for M&P Shield, Shield 45 & Shield 2.0

This Duty/Carry Kit for the M&P Shield, Shield 45, and Shield 2.0 reduces trigger pull weight by approximately 2 lbs while retaining the factory trigger shoe. It addresses the primary complaint among Shield users: a heavy, gritty stock trigger that limits precision during rapid fire. By swapping the sear, sear spring, and striker block, this drop-in kit smooths the uptake, shortens the reset, and reduces over-travel without requiring frame modification or trigger shoe replacement. The result is a consistent 4.5–5.5 lb pull suitable for concealed carry and USPSA Production division.

Platform Compatibility

• Smith & Wesson M&P Shield 9mm
• Smith & Wesson M&P Shield .40
• Smith & Wesson M&P Shield 45
• Smith & Wesson M&P Shield 2.0 (all calibers)
• Does not fit standard M&P 1.0/2.0 full-size, Compact, or 2.0 Compact

Key Features

• Pull weight reduction: Approximately 2 lbs lower than factory — typically 4.5–5.5 lbs final

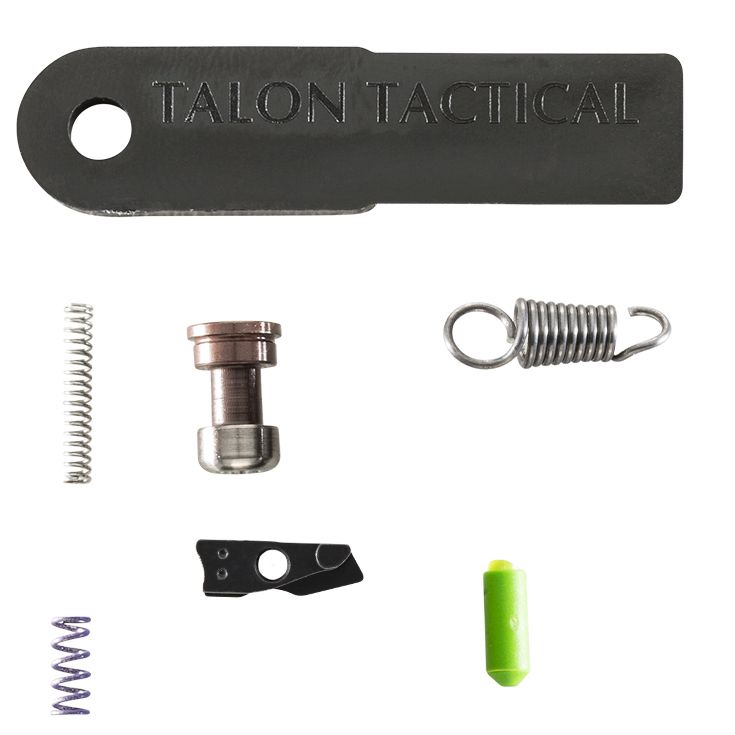

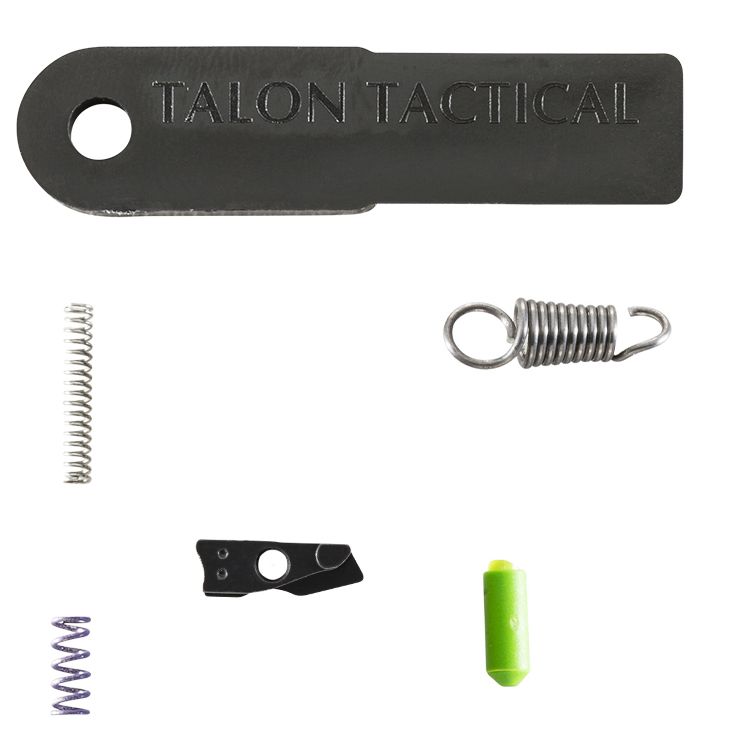

• Smoother uptake: Replaces the sear and striker block to eliminate stacking and creep
• Reduced reset: Shorter audible/tactile reset for faster follow-up shots
• Reduced over-travel: Limits trigger movement past the break point
• Drop-in installation: Direct replacement parts — no fitting, filing, or polishing required
• OEM trigger retained: Uses the factory trigger shoe; no change to trigger reach or blade safety

Install Difficulty: 2/5

Tools needed: Armorer’s punch set (1/16” and 3/32”), small hammer, slave pin or paper clip for trigger pin, safety glasses. Estimated time: 20–40 minutes. Requires removal of the slide and trigger housing. No frame modifications. Note: The kit uses either a two-dot sear or a #2 sear — both function identically in Shield platforms and do not affect performance.

FAQ

Will this work with my Shield 2.0 Performance Center?

Yes. The Duty/Carry Kit is compatible with all Shield 2.0 variants including Performance Center, EZ models (if they use the standard Shield sear housing), and optics-ready slides. Confirm your firearm uses the standard M&P Shield trigger housing before installing.

Does this kit reduce pull weight below 4 lbs?

No. The Duty/Carry Kit is designed for a final pull weight of 4.5–5.5 lbs. If you need a sub-4 lb trigger, consider the Apex Flat-Faced Carry Kit or Competition Kit. This kit prioritizes reliability for defensive use.

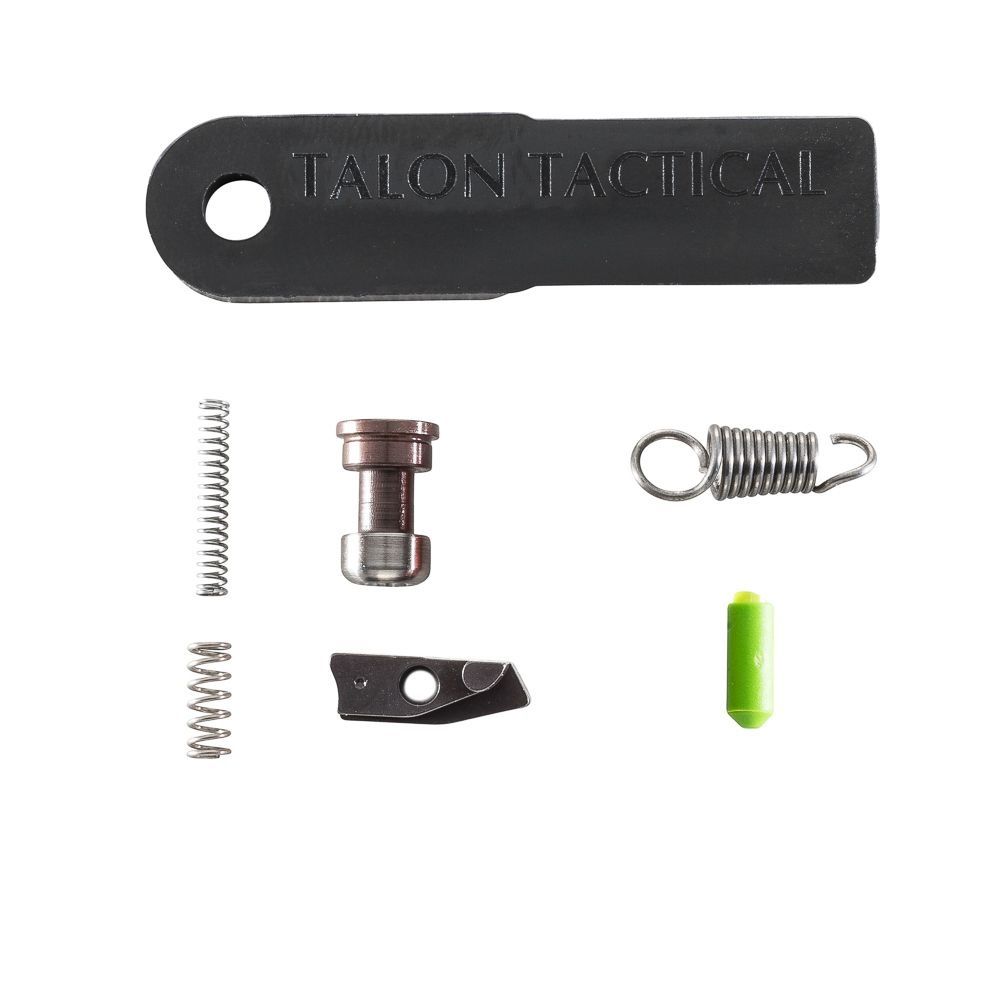

Why does my sear have different markings than the one in the photo?

We are transitioning from the two-dot sear to the #2 sear. Both are functionally identical in Shield kits — same geometry, same pull weight reduction, same reset characteristics. You may receive either version. Performance is unchanged.

Shipping & Warranty: Ships within 1 business day via USPS Priority or UPS Ground. This kit includes Apex’s limited lifetime warranty against manufacturing defects. No returns on installed parts. If you have questions about fitting or compatibility, contact our armorers before purchase.
