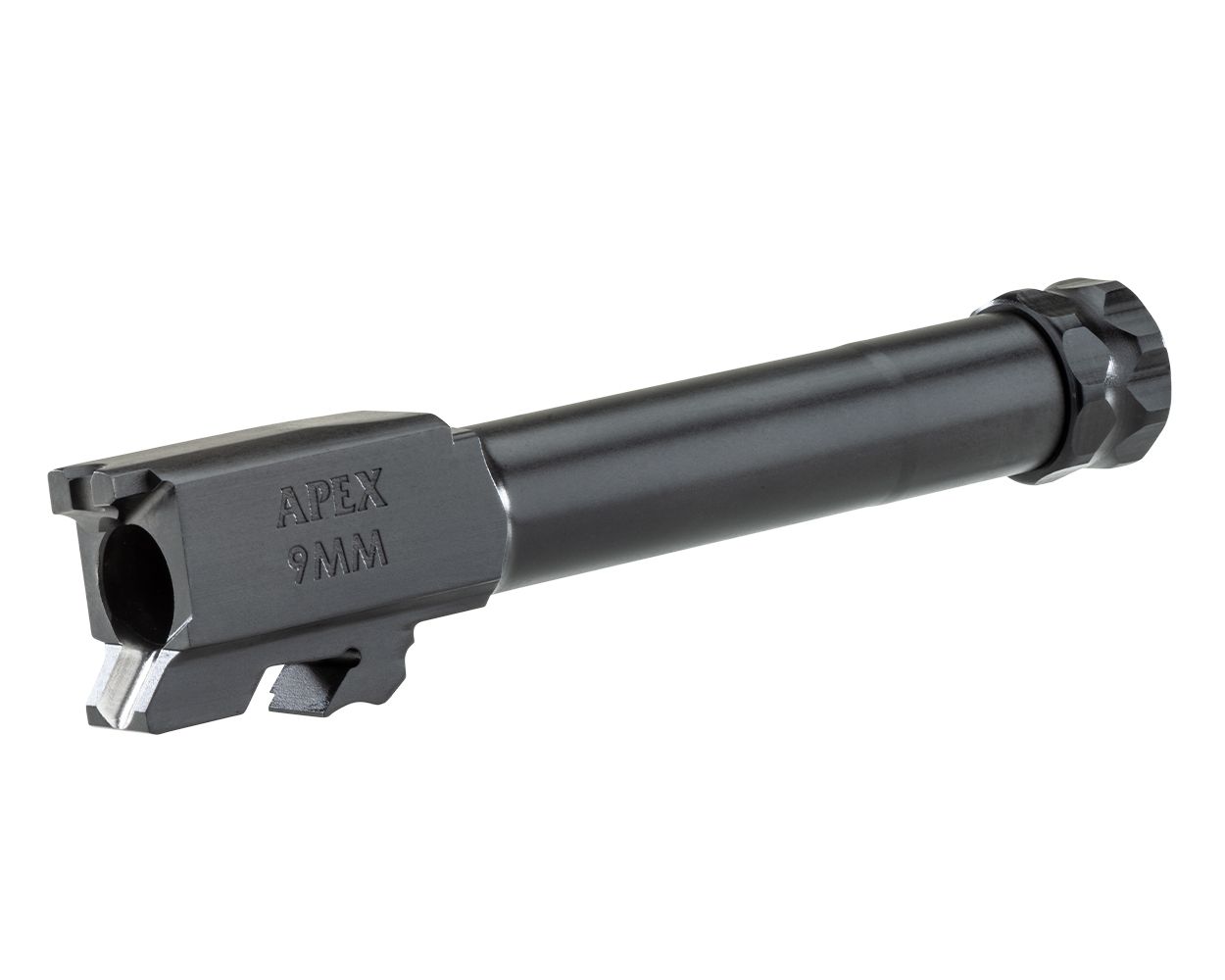

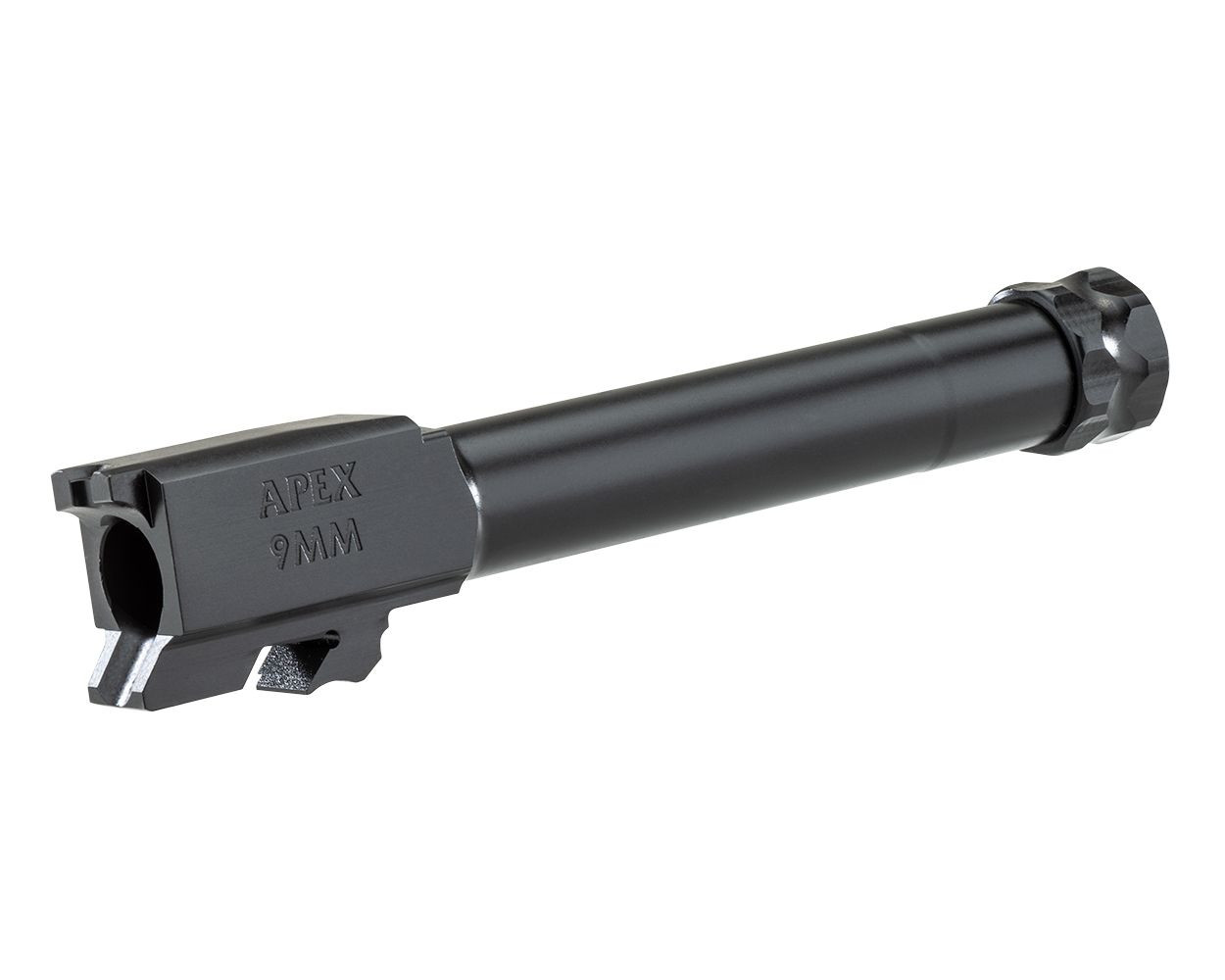

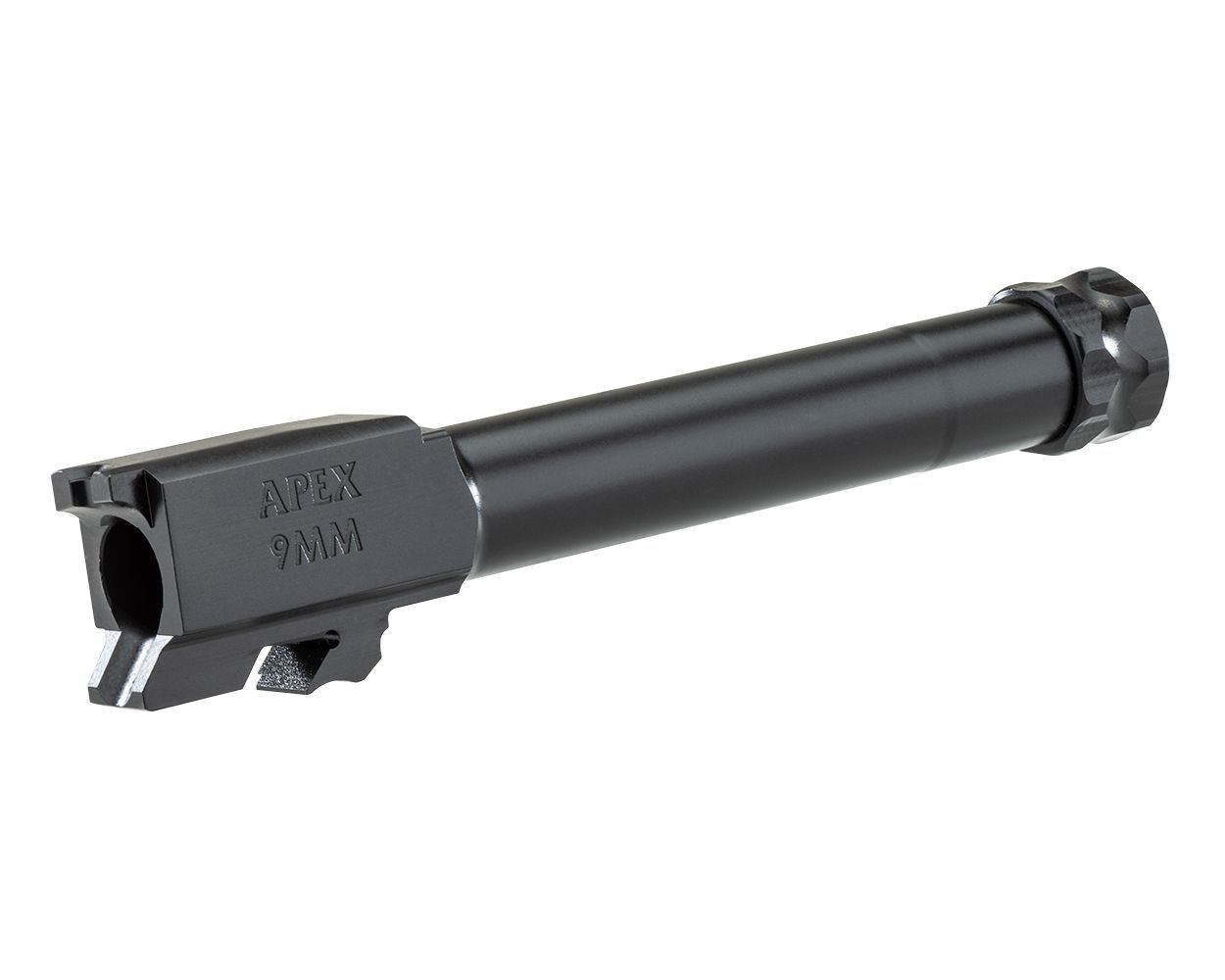

Apex 9mm Drop-In Threaded Barrel for M&P

This drop-in threaded barrel converts your Smith & Wesson M&P pistol for suppressor or compensator use without any gunsmith fitting. Machined from a cold hammer-forged stainless steel blank, it replaces the factory barrel in minutes and provides a 1/2-28 threaded muzzle with included O-ring style thread protector. The 1:10″ twist rate stabilizes standard 9mm loads through a suppressor or ported compensator. The black finish is heat-treated for corrosion resistance and matches factory slide profiles.

Compatibility

• Smith & Wesson M&P 9mm (full-size, compact, and Shield models — verify generation)
• M&P 2.0 9mm (all variants)
• M&P C.O.R.E. 9mm
• M&P M2.0 Compact/Subcompact
• Note: Does not fit M&P 9L, M&P 9 Pro Series, or Performance Center models without verification of barrel lug dimensions
• Important: If your slide has a loaded chamber indicator (LCI), you must remove it or install the No Profile Loaded Chamber Indicator Block (sold separately)

Key Features

• Cold hammer-forged 416R stainless steel barrel blank — stress-relieved and heat-treated to 40-44 HRC
• 1:10″ twist rate, 1/2-28 threaded muzzle (standard 9mm suppressor/comp thread pitch)
• Drop-in fit — no fitting required. Installs same as factory barrel
• Thread protector with captive O-ring included
• Black nitride finish (salt bath nitriding) for lubricity and corrosion resistance
• Match-grade chamber and feed ramp — supports jacketed, plated, and lead projectiles

Install Difficulty: 1/5

Tools needed: None. Field strip the slide, remove factory barrel, drop in this barrel, reassemble. If your slide has an LCI, you will need a small punch to drift out the LCI pin and remove the indicator block.

Estimated time: 3–5 minutes

Frequently Asked Questions

Will this barrel fit my M&P Shield?

Yes, the 1/2-28 threaded barrel is available for Shield 9mm models. Select the correct variant (Shield vs. full-size) at checkout. Shield barrels have a different hood profile and are not interchangeable with full-size frames.

Does this barrel require a different recoil spring for suppressor use?

Most factory M&P recoil springs will cycle standard 115–147 gr ammunition with a suppressor. If you experience short-stroking or failure to return to battery, upgrade to a 13–15 lb recoil spring (sold separately).

Is this barrel compatible with aftermarket slides?

Yes, barrel dimensions match factory M&P locking lug location and hood length. It will drop into aftermarket slides cut for OEM-spec M&P barrels. Verify your slide’s chamber support and breech face dimensions if using a non-OEM slide.

Shipping & Warranty

This barrel ships with a thread protector and captive O-ring. Not available for shipment to CA, CT, DE, Washington DC, HI, IL, NY, or WA. Backed by the manufacturer’s limited lifetime warranty against defects in materials and workmanship. Standard lead time 3–5 business days.
