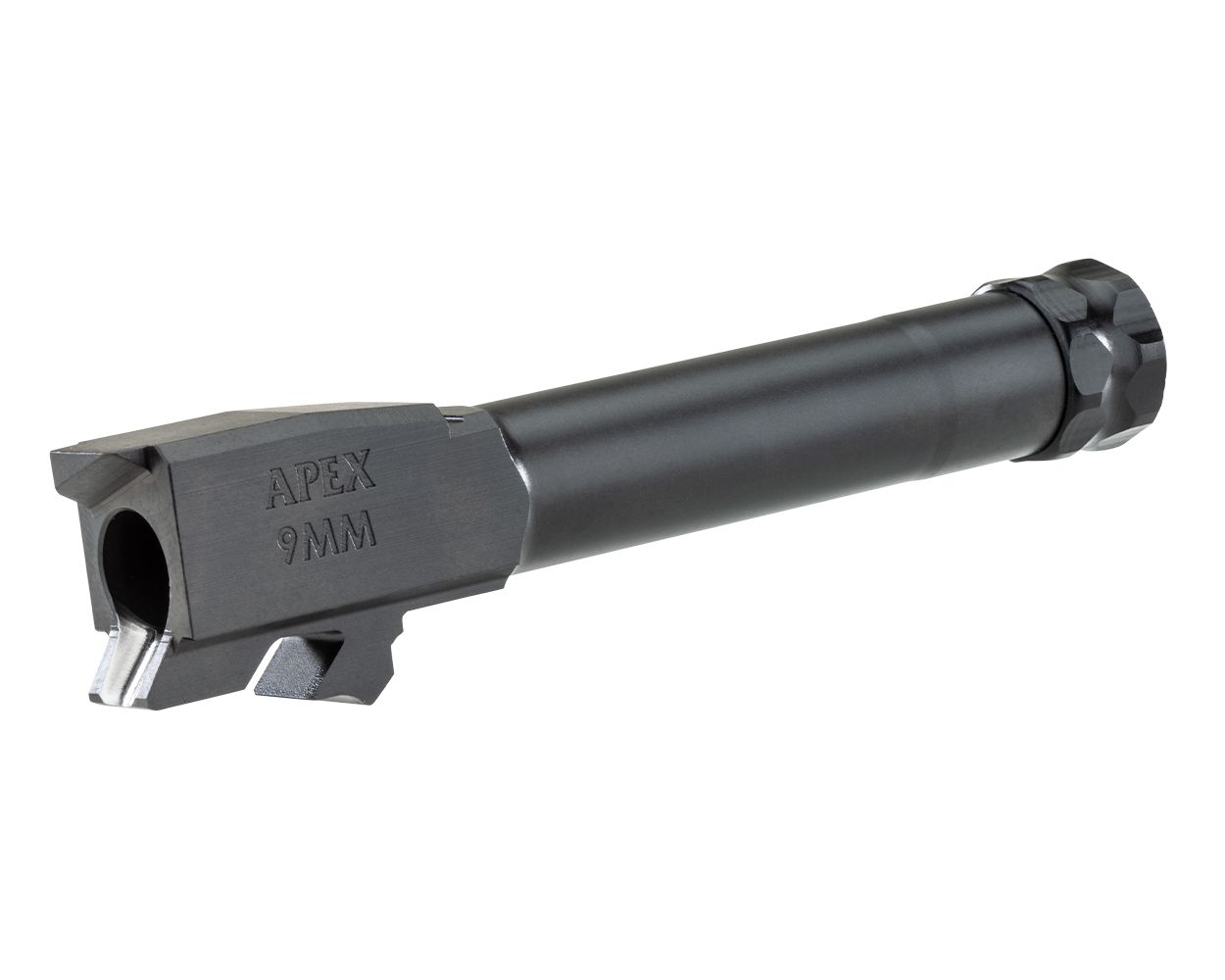

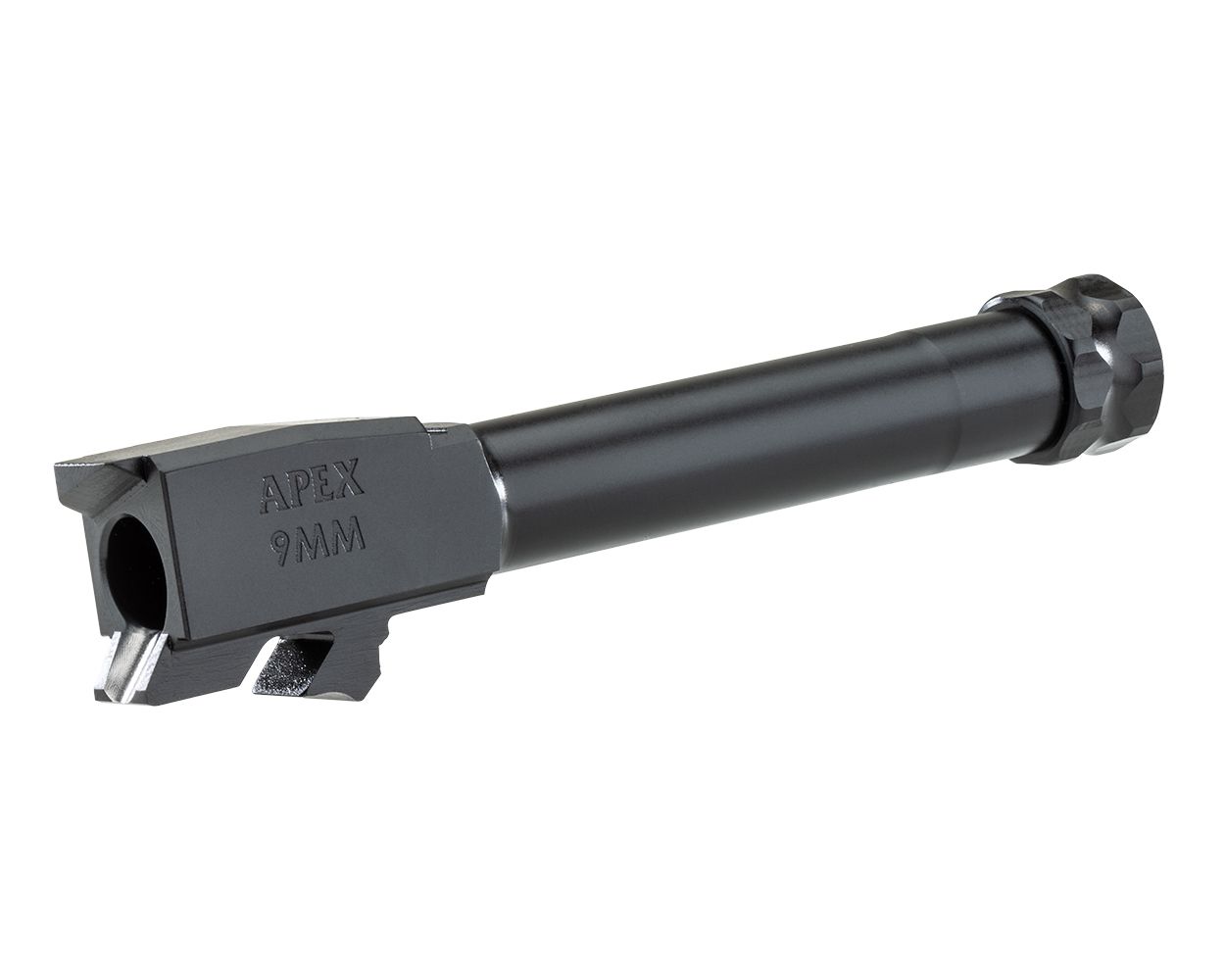

Apex 9mm Drop-In Threaded Barrel for FN 509

This drop-in threaded barrel converts your FN 509 to accept a suppressor or compensator without any gunsmith fitting. Engineered to replace the factory barrel, it solves the problem of limited muzzle-thread compatibility on standard FN 509 slides. The 1:10” twist rate stabilizes standard 9mm projectiles, while the 1/2-28 thread pattern matches the majority of 9mm suppressors and muzzle devices on the market. Each barrel is heat-treated for dimensional stability under sustained fire and finished in a corrosion-resistant black coating. A thread protector with captive O-ring is included to shield the threads when not in use.

Compatibility

• FN 509 (full-size, compact, midsize, and tactical variants)
• FN 509 LS Edge
• FN 509 MRD
• Not compatible with FN 509 Compact with non-threaded barrel
• Not for sale to CA, CT, DE, Washington DC, HI, IL, NY, WA

Key Features

• Drop-in fit – No barrel fitting, timing, or headspace adjustment required. Install in minutes using factory slide components.
• 1:10” twist rate – Matches factory 9mm stabilization for 115–147 gr ammunition.
• 1/2-28 thread pitch – Industry standard for 9mm suppressors and compensators.
• Heat-treated 416R stainless steel – Core material is stress-relieved and heat-treated to maintain straightness under thermal load.
• Black nitride finish – Corrosion-resistant, low-glare exterior that resists holster wear.
• Included thread protector – Captive O-ring prevents loosening during live fire.

Install Difficulty Rating: 1 / 5

Tools needed: Punch set, non-marring hammer, bench block. Standard field-strip procedure. No fitting or dremel work required. Expect 5–10 minutes for first-time install.

Frequently Asked Questions

Will this barrel fit my FN 509 Compact with a standard slide?

Yes, the barrel is compatible with the FN 509 Compact slide, but the barrel length will extend past the slide by roughly 0.6” due to the threaded section. It will not fit flush. It will function with the Compact frame.

Do I need to replace the recoil spring when using a suppressor?

For most suppressor setups, the factory recoil spring is sufficient with standard-pressure 9mm ammunition. If you experience cycling issues with heavy subsonic loads, consider a 15-lb or 17-lb recoil spring (not included).

Is this barrel compatible with the FN 509 LS Edge?

Yes. The LS Edge uses the same barrel lockup and feed ramp geometry as the standard FN 509. This barrel is a direct drop-in replacement for the LS Edge factory barrel.

Shipping: Ships within 1–2 business days via USPS Priority or UPS Ground. Warranty: This component carries a limited lifetime warranty against manufacturing defects in materials or workmanship. Thread wear from suppressor use is not covered.
